Multi-compatible Integrated Endoscopy Solutions

x-2600

The Go-To System for Streamlined CareLeveraging over a decade of technological expertise, X-2600 is tailored to meet the needs of frontline healthcare professionals: sleek, easy to operate and versatile with the most essential features. This high-definition video system is compatible with flexible, rigid, and fiber endoscopes, encompassing a large array of diagnosis and therapeutic options. Let X-2600 seamlessly integrates into modern operating rooms, offering exceptional value for your budget.

Multi-compatible Integrated Endoscopy Solutions

x-2600

The Go-To System for Streamlined CareLeveraging over a decade of technological expertise, X-2600 is tailored to meet the needs of frontline healthcare professionals: sleek, easy to operate and versatile with the most essential features. This high-definition video system is compatible with flexible, rigid, and fiber endoscopes, encompassing a large array of diagnosis and therapeutic options. Let X-2600 seamlessly integrates into modern operating rooms, offering exceptional value for your budget.

The compatibility that simplifies your workflow

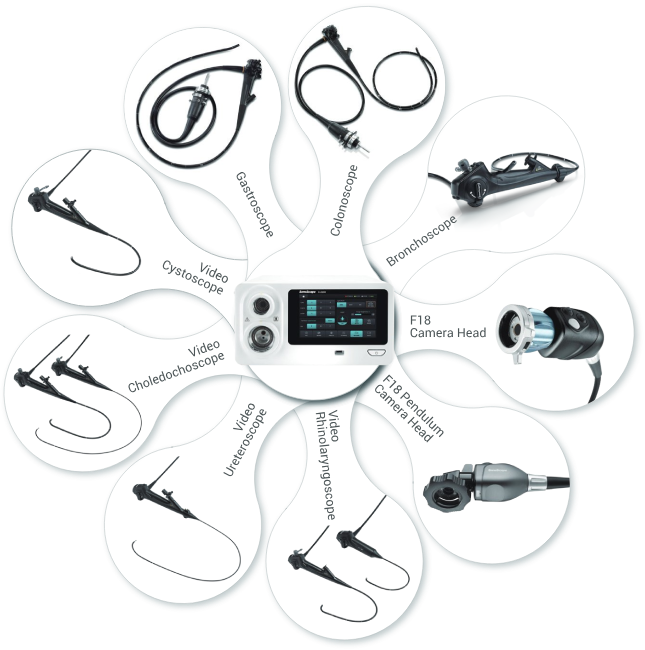

X-2600 automatically identifies the type of endoscope and generate the corresponding interface. Explore our expanding portfolio of X20 series flexible endoscopes, catering to various specialties such as gastrointestinal, pulmonology, urology, and surgical disciplines. Additionally, we offer four types of lightweight camera heads with universal mounting, facilitating connections to both rigid and fiber endoscopes.

The visual field you can truly

trustX-2600's powerful chip allows an optimal image adjustment without delay, and outputs sharp, true-to-colour images. This outstanding and stable visual field creates an excellent visualising experience, enabling easier and finer operations.

The technology you may rely on

SonoScape's chromoendoscopy SFI/VIST technology combines optical and digital image processing. Just like in procedures on humans, it enhances the details of the mucosa and the blood vessels. With this added information, SFI/VIST may help you in lesion detection and in-vivo diagnosis.

The optical excellence you called for

Paired light source employs a 2-LED light source with a lifespan of over 50,000 hours. You will obtain a noticeably brighter, high-quality image with minimal light loss and maximal mucosal details. Small vessels can be clearly observed under the enhanced White Light mode.

The interaction at your fingertips

Thanks to the one-of-a-kind tactile control panel, interacting with X-2600 can't be easier. The system comes with all essential features adjustable directly from the front panel, with a one-tap screen lock. Additionally, the built-in recording function is compatible with both USB drives and hard disks, offering greater convenience and cost-efficiency.

Specifications

X-2600, Integrated Endoscopy Video System Centre
Video output 1080p, DVIx2, SDIX2
Light source 2-LED lamps, ±50,000 hours
User interface 8-inch touch screen
Storage Picture/Video recording on portable USB memory
Digital zoom Up to x4.0
White balance Auto & memory
Brightness adjustment Automatic gain control (GAIN)
Brightness Auto/Manual, 1-19 levels
Voltage 100-240 V AC
Frequency 50/60 Hz
Rated input 492 x 37
Dimensions [L x W x H/weight] 492 x 373.5 x 205 mm/16.7 Kg

Scopes

X 20, Series Endoscopes
  Gastroenterology Pulmonology
  EG-X20 EC-X20 EC-X20L EB-X20 EB-X20T
Field of view [°] 145 145 145 120 120
Depth of filed [mm] 2-100 2-100 2-100 2-100 2-100
Distal End Dia. [mm] 9.3 12 12 4.9 5.9
Insertion Dia. [mm] 9.3 12.5 12.5 4.9 5.9
Instrument Dia. [mm] 2.8 3.8 3.8 2.0 2.8
Angulation [°] U/D:210/120
L/R:100/100		 U/D:180/180
L/R:160/160		 U/D:180/180
L/R:160/160		 U/D:180/130
L/R:120/120		 U/D:180/130
L/R:120/120
Working length [mm] 1050 1350 1700 600 600
X 20, Series Endoscopes
  Endosurgical
  ENL-X20 ENL-X20T ECH-X20 ECY-X20 EUC-X20S
Field of view [°] 110 90 120 120 90
Depth of filed [mm] 3-50 2-50 3-100 3-50 1.5-50
Distal End Dia. [mm] 3.6 4.8 4.8 2.7 8.5F
Insertion Dia. [mm] 3.9 4.9 5.1 5.5 8.4F
Instrument Dia. [mm] / 2.0 2.2 2.2 3.6F
Angulation [°] U/D:130/130 U/D:130/130 U/D:160/130 U/D:220/130 L/R:275/275
Working length [mm] 300 365 450 380 670
Camera Heads
Types of camera head
10.110.201 Focal lens 19-38mm, up to x2.0
10.111.201 Focal lens 18mm
10.112.201 Focal lens 32mm
10.100.201 Focal lens 18mm
Laparoscopes
TelescopeΦ 10.0 mm Scope 10.0 mm Scope
Working length 307 mm 307 mm
Direction of view 0° 30°
Field of view wide angle wide angle
Sterilisation Autoclavable Autoclavable
