Enabling Advanced Imaging

X-2200

Comapct High-definition video endoscopy system With integrated 2-LED light sourceX-2200 is a cost-effective solution that drives a transformative experience. Designed for frontline healthcare professionals and drawing upon the technology expertise from our larger, successful models, X-2200 brings the same high-definition vision found in the most premium endoscopy units. Simple to set-up and space efficient, X-2200 boasts essential features readily accessible and adjustable from the control panel, along with the option to add on external memory.

Enabling Advanced Imaging

X-2200

Comapct High-definition video endoscopy system With integrated 2-LED light sourceX-2200 is a cost-effective solution that drives a transformative experience. Designed for frontline healthcare professionals and drawing upon the technology expertise from our larger, successful models, X-2200 brings the same high-definition vision found in the most premium endoscopy units. Simple to set-up and space efficient, X-2200 boasts essential features readily accessible and adjustable from the control panel, along with the option to add on external memory.

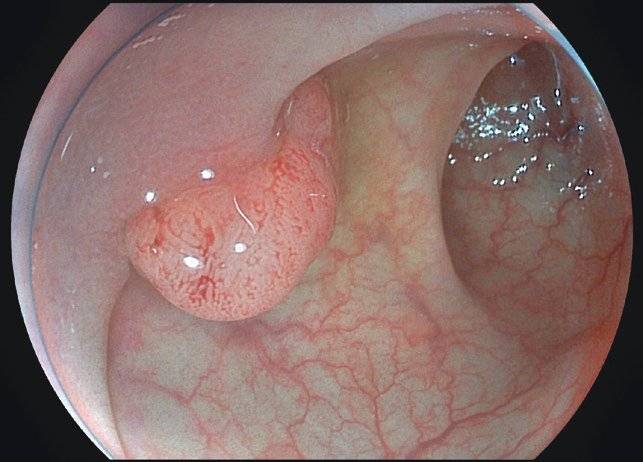

Superior and reliable performance

Experience the high-definition image clarity under the White Light, X-2200 is tailored precisely to meet your expectations for visual excellence.

WL

VIST

Longer operating life with two-LED lights

Enjoy the brightness for much longer before thinking about bulb replacement.

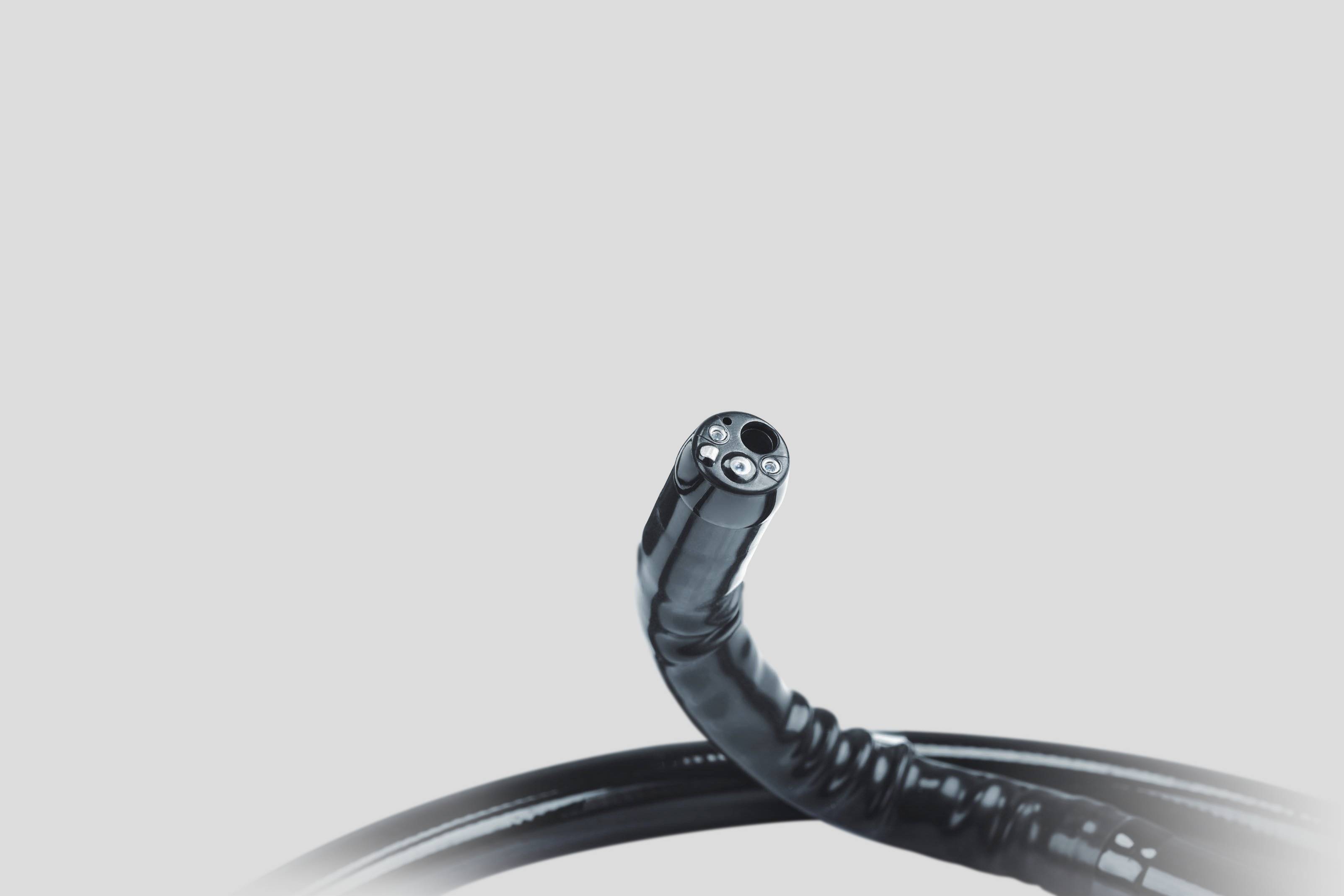

Equipped with water jet

All the scopes are equipped with the water jet function, which assures a clear view at all times.

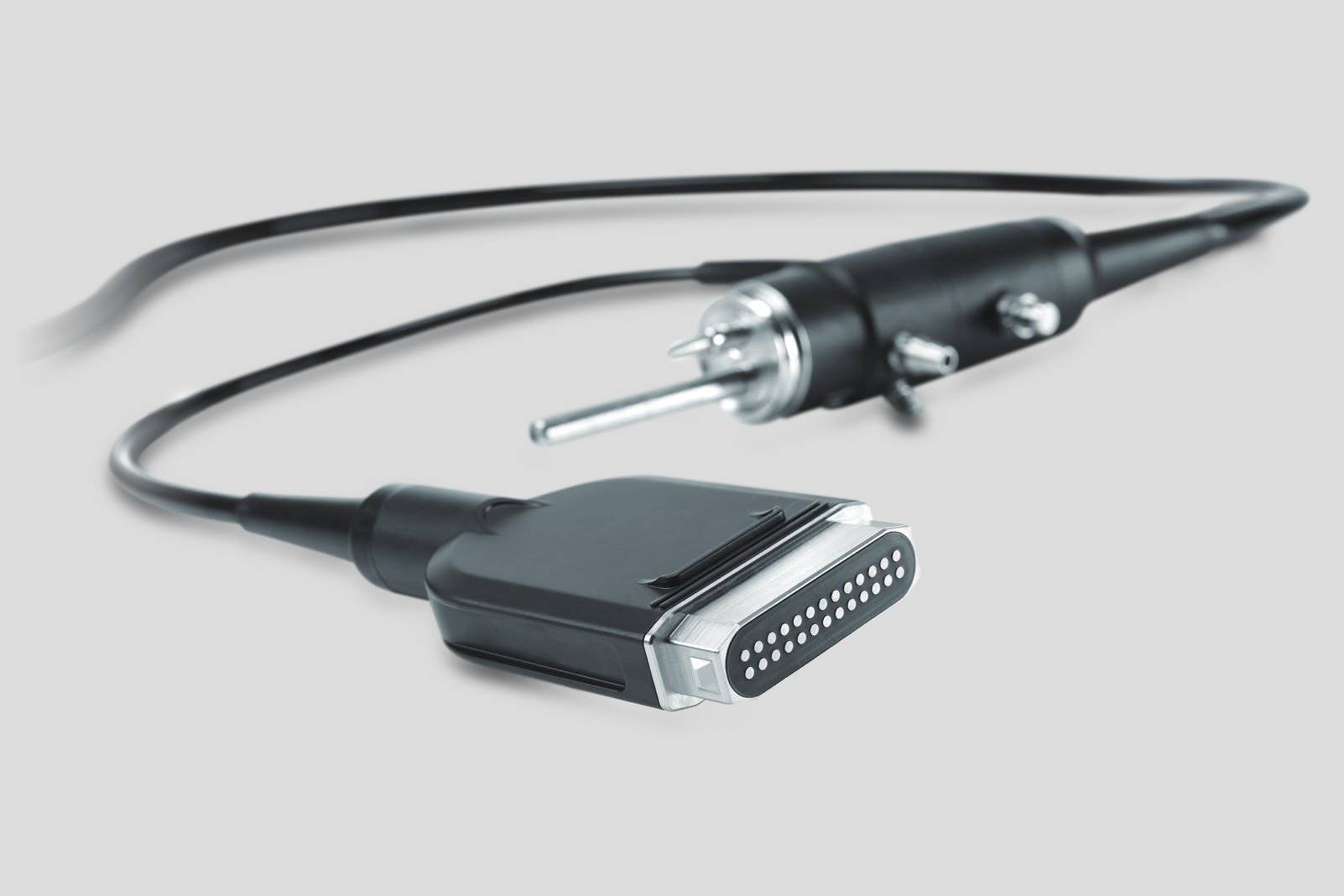

Newly developed scope tubing

The X-2200 is paired with the specially designed 2200 series of scopes of an upgraded tubing. They offer great comfort and ease during a variety of operations, helping to shorten the procedure time, and to reduce both patients' discomfort and yours.

A handy deployment

One-step connection and waterproof, the 2200 series scopes can be plugged and unplugged, cleaned and disinfected straightforwardly at a minimal risk of water damage by mismanipulation.

Specifications

X-2200 Image Processor with Integrated Light Source
Video output 080p, DVI*2, SDI*2
Light modes WL, eWL, VIST chromoendoscopy
Digital zoom Up to x2.0
IRIS Peak/Average/Auto
Colour adjustment Red, Blue, Chroma(±8 levels)
Air feeding pressure switching 4-level available (OFF/L/M/H)
Data management External U Disk
White balance Auto-saved available
Image enhancement 1-3 levels, 0-8 steps er level
Main Lamp White light LED: 70W, Blue-violet LED: 130W
Brightness Auto/Manual, 1-19 levels
Transillumination mode 6-8 seconds
Freeze an image using Scope button, keyboard, footstep, front panel "SNAP"
Hot plugging Yes
Dimension [L x W x H/Weight] 491x376x179 mm/15.5 Kg

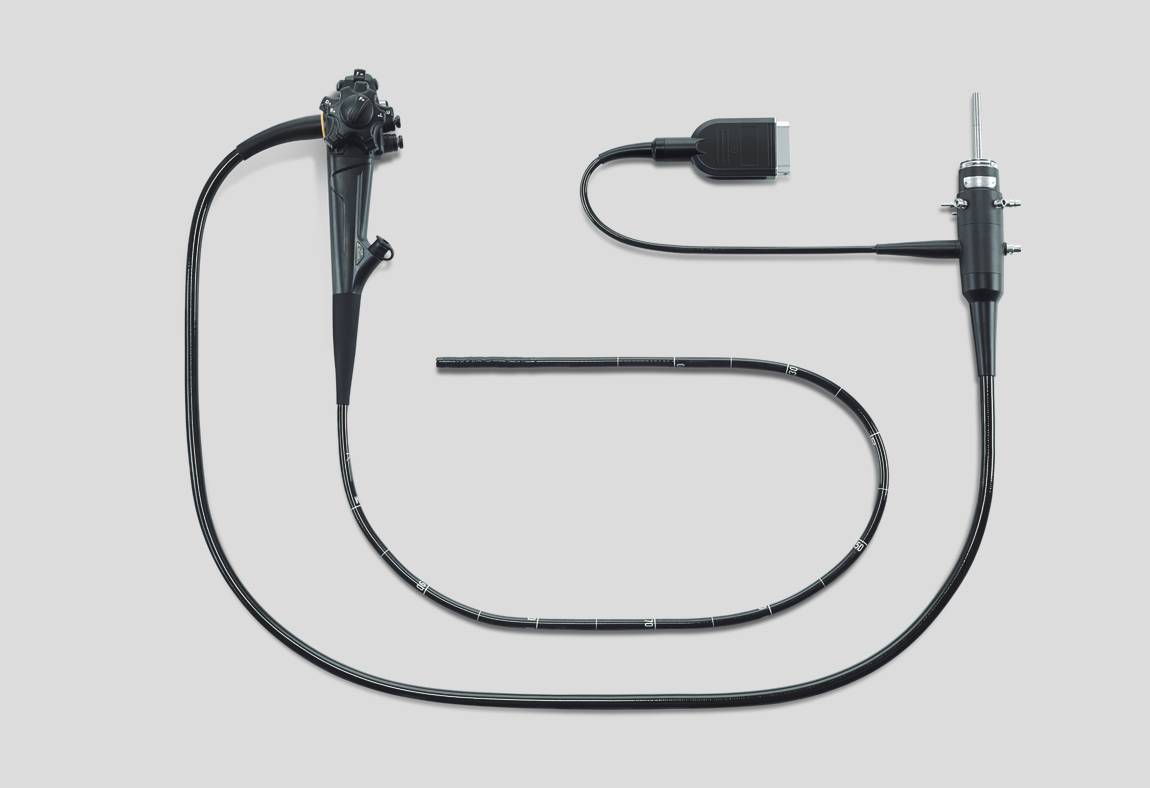

2200 Series Scopes
  EG-2200 EC-2200 EC-2200L
Field of view (°) 140 170
Depth of view (mm) 3-100 3-100
Distal-end diameter (mm) 9.3 12.0
Insertion tube diameter (mm) 9.3 12.5
Instrument channel diameter (mm) 2.8 3.8
Angulation (°) Up/Down 210/90,
Left/Right 100/100		 Up/Down 180/180,
Left/Right 160/160
Working length (mm) 1050 1350 1700
Total length (mm) 1400 1700 2050
Waterjet YES
Connection One-step, waterproof
Compatibility X-2200 Series
