HD-510 High Definition Video Endoscopy System with 2-LED Light Source and SFT/VIST TechnologyThe one-stop, cost effective, High Definition Video Endoscopy System just got better. SonoScape's HD-510 Processor has evolved in many ways, excelling in a variety of screening and diagnosis procedures.

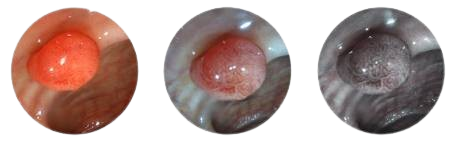

The new chromoendoscopy SFI/VIST is interchangeable at the touch of a button, between White-light, SFI1, and VIST2 instantly suiting your needs in detection, demarcation or characterisation.
| White-light Mode | SFI | VIST |
| Default | Vascular enhancement | Mucosal and vascular enhancement |
In its long lifespan of 10,000 hours, the 2-LED light source consistently offers intensive, purified and all-round light options. Subsequently through an upgraded algorithm, HD-510 masterfully stabilises and balances the overall exposure. You will obtain a noticeably brighter image and impressive staining effects, yet retaining all details in the visual field.
HD-510 inherits the built-in workstation with 500GB of hard disk. It allows you to access patient data, to capture and record images and videos, to create and edit reports in one spot without the need of any extra software.
Whether it is a routine procedure or a complex operation, there is a benefit of having a CMOS image sensor. It enables a High Definition image output, with sharper edge and displaying more details.

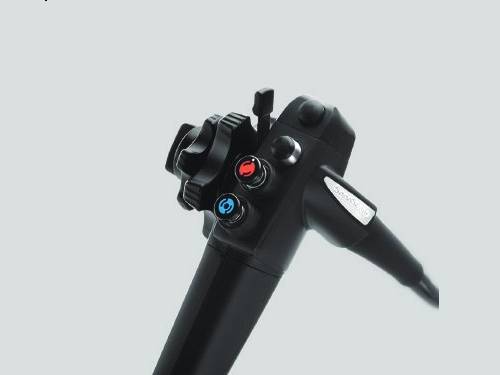

Comfortable to hold, the scope handle adopts an ergonomic design and a more intuitive layout, helps to reduce the fatigue in longer interventions.

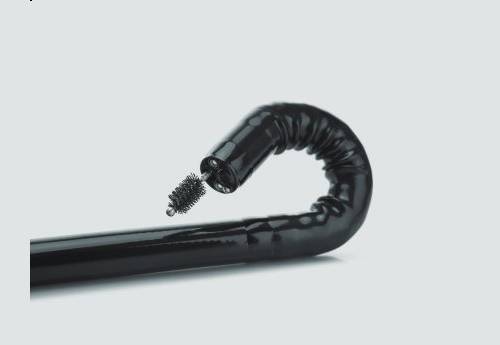

Short bending radius and gradual stuffness allows to intubae, reach and observe efficiently. The large instrument channel facilitates the therapeutic procedures.

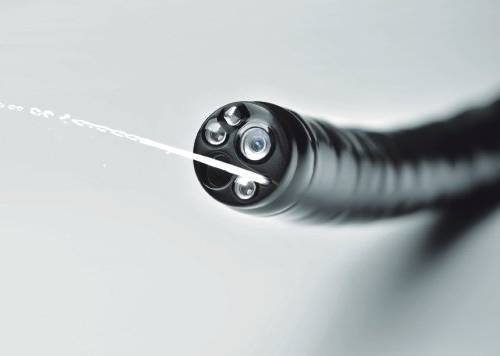

All the scopes are equipped with water jet function, handily aligned with the direction of the instrument channel, it wsahes off any mucus or blood and assures a clear view.

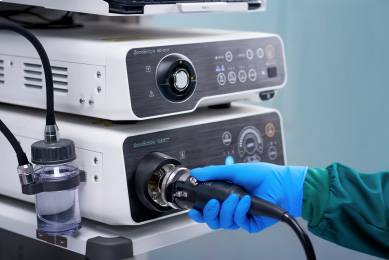

Switching a 550 scope has never been this convenient. Plug and play without interrupting the processor, the system guarantees a seamless procedure at any time.

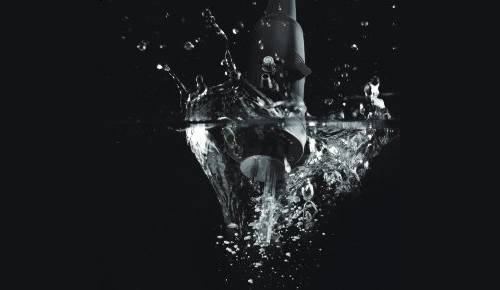

The 550 series scopes can be submerged under water or solution without a waterproof cap. They can now be cleaned and disinfected with ease, at a minimal risk of water damage by mismanipulation.
| HD-510 VIDEO PROCESSOR | ||
| Station | Separated | |
| Video output | SDI, DVI, VGA, CVBS, S-video | |
| Resolution | 1080p | |
| Chromo | SFI/VIST | |
| Digital Zoom | 1.4x, 1.6x, 1.8x | |
| Patient Data | ≥ 10,000 records | |
| IRIS | Peak/Avg/Auto | |
| Color adjustment | Red, Blue, Chroma, ±15 levels | |
| Air feeding | 4 levels (Off/L/M/H) | |
| AGC | Yes | |
| Data Management | 500G Built-in, 5 USB | |
| White Balance | Auto-saved | |
| Image enhancement | Structure enhancement, Edge enhancement | |
| Contrast/denoise | L/M/H , auto-denoise | |
| Dimension (mm) | 480x370x125 | |
| VLS-50T SERIES LIGHT SOURCE | |
| Main Lamp | W-LED, violet LED |
| White light mode | High color rendering index and high luminous flux |
| SFI/ VIST | High brightness and specific spectrain the 2 special light modes |
| Brightness | Auto/Manual, 1-19 levels |
| Transillumination mode | 6-8 seconds |
| Service time | 10000 hours (Continuous use) |
| Hot plugging | Yes |
| Dimension (mm) | 473x370x154 |
| 500 and 550 SERIES SCOPES | ||||||
| EG-500 EG-550 |
EG-500L EG-550L |
EC-500 EC-550 |
EC-500T EC-550T |
EC-500L EC-550L |
EC-500L/T EC-550L/T |
|
| Field of view | 140° | 140° | 140° | 140° | 140° | 140° |
| Depth of view | 3-100mm | 3-100mm | 3-100mm | 3-100mm | 3-100mm | 3-100mm |
| Distal End Dia. | 9.3mm | 9.8mm | 12mm | 12mm | 12.9mm | 12.9mm |
| Insertion Dia. | 9.3mm | 9.8mm | 12.5mm | 12.5mm | 12.9mm | 12.9mm |
| Instrument Dia. | 2.8mm | 3.2mm | 3.8mm | 3.8mm | 4.2mm | 4.2mm |
| Angulation | U210°, D90°, L/R100° | U/180°, L/R160° | ||||
| Working length | 1050mm | 1050mm | 1350mm | 1700mm | 1350mm | 1700mm |
| Water Jet | Yes | Yes | Yes | Yes | Yes | Yes |
| One-Touch* | Yes | Yes | Yes | Yes | Yes | Yes |
| Optical Fiber Trans* | Yes | Yes | Yes | Yes | Yes | Yes |
